Transducers & Hydrophones



Transducers



Subbottom Profiling Transducer



Free Flooded Ring Transducer

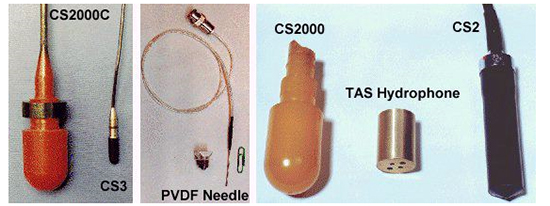

Hydrophones





Towed Arrays

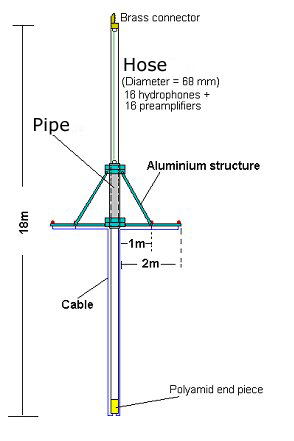

Vertical Arrays
  • Detection Device
  • Ship Noise Measurement
  • Bottom Back - Scattering Measurements (Receiving)

    •

    Hydrophon
    in Array
    On Frame
    Number
    16
    8
    Encapsulation
    PU
    PU
    Receiving sensitivity
    -192 dB /(-168 dB)
    -192 dB /(-168dB)
    Preamplifier Gain
    25 dB
    25 dB

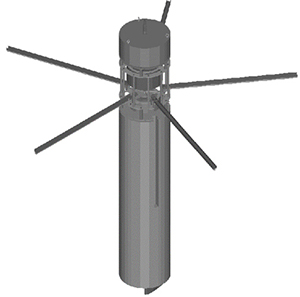

    Deployable Mid Frequency Sonar

    This sonar system could be deployed (from a ship or helicopter) in the area of interest to detect submarines. It gives a 3D plot of the environment. The vertical transmitter consists of a stack of free-flooded-ring transducers (f = 1.9 KHz) and could be steered in the vertical. The horizontal receiving arrays are movable (in the vertical) attached to the transmitter.

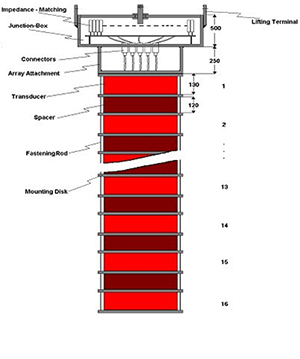

  • Free - Flooded - Ring - Array
  • Frequency = 1.9 KHz
  • Source Level = 225 DB (re1µPa,1m)

    •

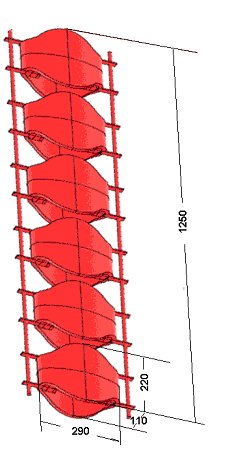

    Low Frequency (550 Hz) Transducer Array





    The array consists of six Terfenol D flextensional transducers
